Thickness of Enclosure :1.5mm or 3.0mm or upon clients
Brightness :250cd/㎡
Supported OS :windows 7 or windows xp /2003 or Linux or Unix
Material Feature :Anti-dust, Anti-vandal
Contact Now
company introdution
Shenzhen Lean Kiosk Systems Co.,LTD ( LKS for short as following ) is a professional kiosk manufacturer engaged in all kinds payment kiosk, information kiosk, touch screen kiosk, ticket dispenser kiosk, banking kiosk, simple ATM kiosk, advertising kiosk, outdoor kiosk, self-service vending machine etc.
LKS kiosk products have been widely applied to bank, hospital, cinema, super market, convenient store, shopping mall, restaurant, metro station, bus station, gas station, exhibition hall, museum, airport, real estate property and other public areas. LKS is with his own professional design team, R& D team, purchase team, production team, sales team, inspection team and after-sale services team. LKS pay more attention to the best quality products, quick response and warmest services to customers all over the world. We offers standard kiosk products as well as customization services to meet customer's specific requirements. With our experienced teams, we have the capability to design and develop the best quality products that will make you stand out against competitors. We are dedicated to working with you to provide solutions to suit your needs and applications.
All In One Kiosk Touch Screen Kiosk Payment Machine :
Industrious PC
21inch top LCD monitor for advertising
Webcamera
A4 laser printer
High speed video shooting
Smart card reader
2D barcode scanner
Cash acceptor
Coin acceptor
17 inch IR touch screen
Speaker
Free standing single screen cabinet
Wireless Module
Receipt Printer
ID Card Reader
Metal Keyboard with Trackball or Touchpad(64 Keys)
Standard hardware components List is as following :
6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;
PC Power Supply
HUNTKEY/Great Wall
top LCD Display for advertising
Screen Size
19inch
Brightness
250cd/m2
angle
horizontal 100°above;Vertical 80°above
Contrast
1000:1
Backlight tube life
more than 40,000hours
Max. resolution
1280×1024
below LCD monitor
Screen Size
17inch
Brightness
250cd/m2
angle
horizontal 100°above;Vertical 80°above
Contrast
1000:1
Backlight tube life
more than 40,000hours
Max. resolution
1280×1024
below touch screen
Screen Size
17 inch Diagonal
Resolution
4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader
Interface
RS232
Card Type
Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage
DC 24V±5%
Card Entry method
Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad
Keylift‐span
2,000,000 cycles
Key force
2~3N
Key trip
>2.5mm
Protection level
ip65
cash acceptor
Validation Rate
96% or higher
Banknote Insertion
Four-way
Escrow
One banknote
Capacity
1000 notes Max
Coin Acceptor
Coin Acceptance
Max 32 coin types, in 2*16 or 1*32 channels
Coin Accepted Size
Coin diameter: 15-31.5mm ( optionally up to 32.5mm)
Coin thickness: 1.5-2.5mm ( optionally bis 3.3mm)
Detection ability of counterfeit Coins
with high detection ability of counterfeit coins
Accepting Speed
2 Coins/Sec
Supply Voltage
10V-16V DC
Receipt thermal printer
Autocutter
included
Technology
Thermal printing
Paper width
80mm
Printing speed
150mm/s
Data buffer
4KB
Interface
RS232 ,USB
UPS
Input voltage
145-290va
Output voltage
200-255va
Transient time
≦10ms
Max time for supplying a single PC
5~20minutes (for single PC)
Digital Power Supply
AC input voltage range
100‐240VAC
Frequency
50Hz to 60Hz
Output over current protection
110~130%
AC input voltage range
100‐240VAC
Frequency
50Hz to 60Hz
Accessories
Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System
Windows 7 or Windows XP operation system for test
KIOSK Cabinet
Durable steel frame, Slim and smart design; Easy to install and operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing
Security Packing method with bubble foam+wooden case
List of All In One Kiosk Touch Screen Kiosk Payment Machine is as following:
1.Card dispenser
2.Metal keyboard with trackball
3.Fingerprint reader

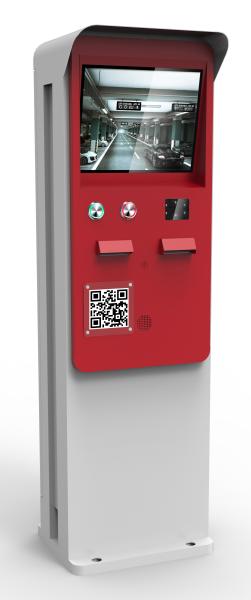

Pictuer of the All In One Kiosk Touch Screen Kiosk Payment Machine :
