24 Inch Touch Screen Self Service Ordering Payment Kiosk For Supermarket Restaurant
Self-Ordering Kiosk
| | |
| | Intel Core I3 1115G4 3.0GHz(up to 4.1GHz) ,FAN | Intel Core I5 1135G7 2.4GHz(up to 4.2GHz) ,FAN |
| | 1 x DDR4, SO-DIMM, 4GB(Max. 32GB) |
| | 1x mSATA 128G (64G/256G optional ) |
| | 1 x 12V-7A/84W + 1 x 24V-2A/48W |
| | Win10 /11 |
| | Size | 24" TFT LCD Panel |
| Brightness | 1920*1080 |
| Resolution | 350cd/m² |
| | | True-Flat Projected Capacitive Touch |
| | USB | 4xUSB3.0 +6xUSB2.0 |
| Serial port | 1xDP9 |
| DC-IN | 1x DC-IN |
| DC-OUT | 1x DC-OUT(Optional) |
| VGA | N/A |
| HDMI | 2XHDMI |
| LAN | 1xLAN(10/100/1000Mb) |
| Audio | 1XAudio |
| Power Switch | 1 x Power Switch |
| | Printer | 80mm thermal printer,auto cutter, 170mm/sec (max.) |
| Camera | 5MP Single camera /5MP Dual camera(Optional) |
| Proximity Sensor | 60-80cm Proximity Sensor |
| Speaker | 2 x 2w Speaker |
| | Operating Condition | 0°C - 50°C,20%RH - 90%RH |
| Storage Condition | ﹣20°C - 70°C,10%RH - 90%RH |
| | WIFI | mPCI-E WiFi/BT module |
| Sanner | VH460(USB,1D,2D,Reading precision:≥3mil,Dimension:36*45*25mm) DY3090(USB,1D,2D,Reading
precision:≥3mil,Dimension:21.4mm*10.8*15.2mm) |
| MSR | USB-HID Mode; 1,2 ,3 Track; ISO7810,7811-1/2/3/4/5,IBM, AAMVA,JIS-2 Standard |
| Payment Device Bracket Support | Custom bracket support for various EMV payment devices |
| NFC/RFID Reader | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), NFC protocols - tag read/write (ISO/IEC-18092) |
| Status light | Printer status light(Red light in error ,Blue light when ready ) |
BENEFITS

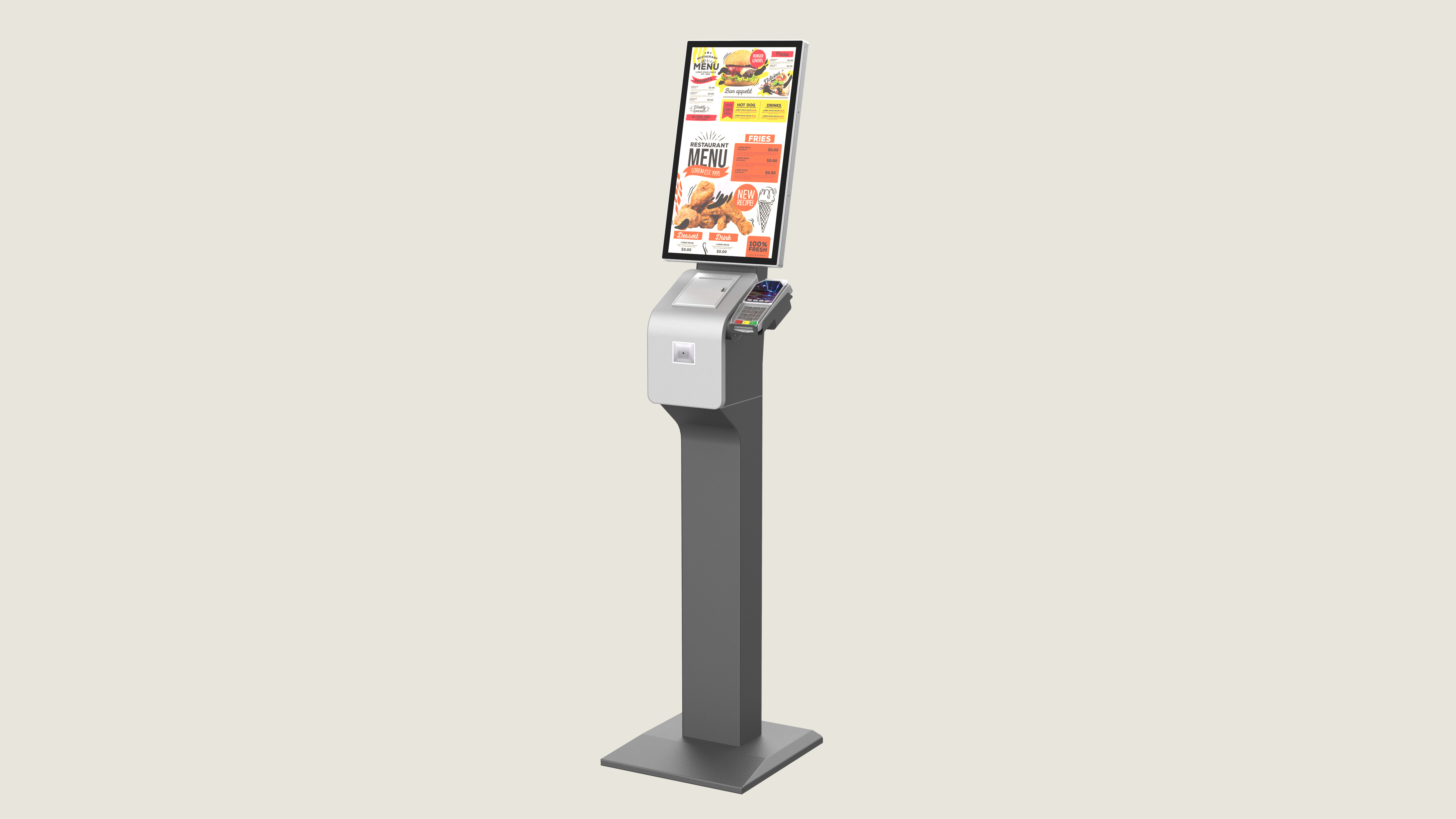

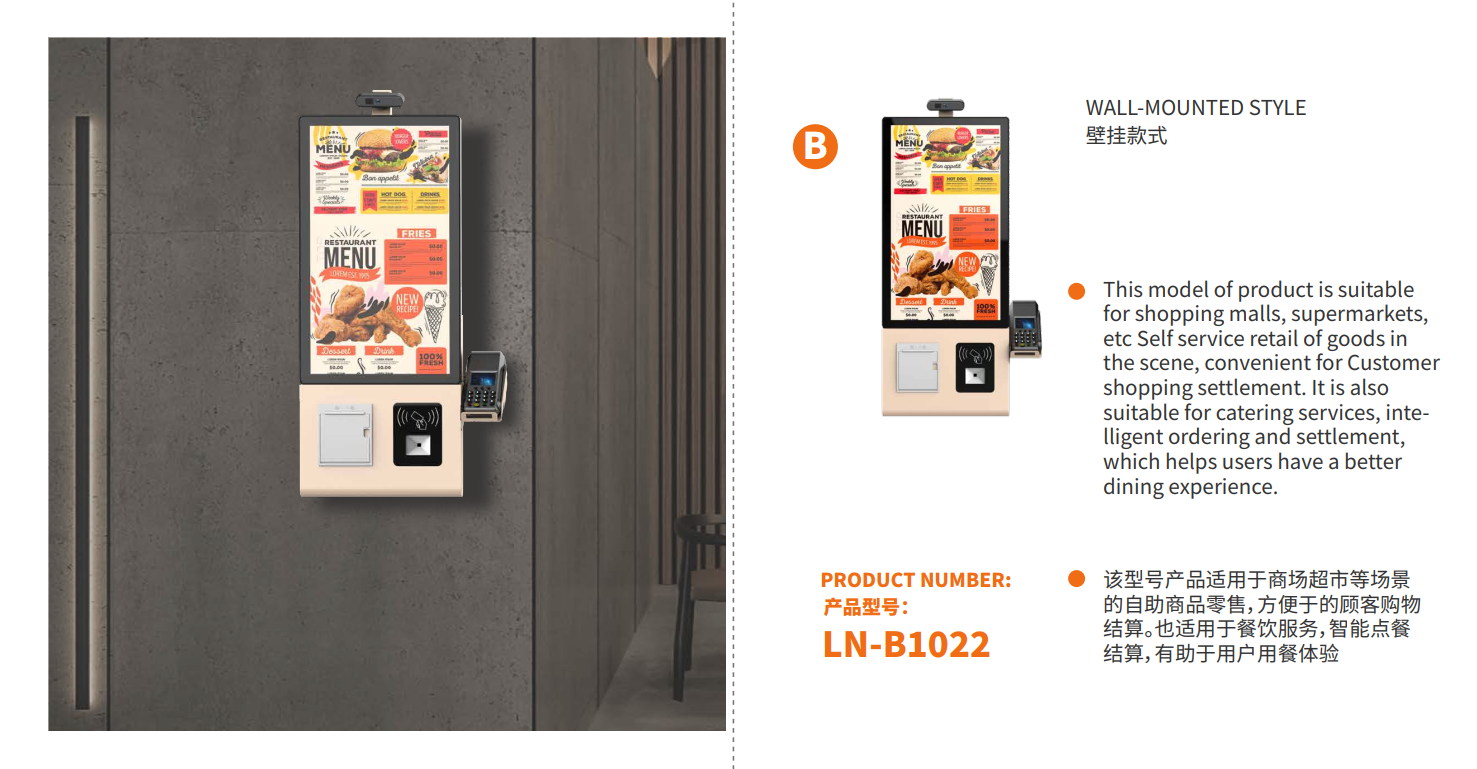

Free-standing or Wall-mounted
Cuts Queues
Easy to Integrate
Modular
Durable
Multi-Touch
Interactive Screens
OPTIONAL COMPONENTS
Card Payment
RFID/NFC
Thermal Printer
Barcode/QR-code Scanner
Self-ordering kiosk with QR scanner and 80mm thermal printer 21.5/23.8/27 inch touch screen for catering
Boost Turnover with our Self-Service Kiosks:
Fully-Automated
Fully automate the order-taking process by letting your customers have the freedom to place orders themselves.
Our Self-Service Kiosks (Self Serve Kiosks) work as a self-catered point of sale that improves convenience for you,
your customers, and your business, as a whole.
Reduce Costs
Let your customers place their orders in a way that’s intuitive and reduces the need for extra staff. Now you can
streamline everything from the ordering process right down to payment.
Browsing Made Easy
Customers can browse through just about anything with our Self Service Kiosk. Be it a selection
of restaurants that are part of a food court or your business’ menu, customers can easily pinpoint
what they need for a smooth experience.
Automatically Fire Orders
Once customers have selected their desired items and placed their order, it will be fired automatically
decreases waiting time and reduces the number of staff required for smooth service.
Self-ordering kiosk with QR scanner and 80mm thermal printer 21.5/23.8/27 inch touch screen for catering
